Class800~1500 Forged Steel Ball Valve
Standards Compliance
1. Design and manufacture conform to BS5351 MSS SP-118;
2. Connection ends conform to:
1) Scoket welded ends conform to ANSI B16.11; JB/T1751
2) Screw ends conform to ANSI B1.20.1; JB/T7306
3) Butt-welded ends conform to ANSI B16.25; JB/T12224
4) Flanged ends conform to ANSI B16.5; JB79
3. Test and inspection conform to: API 598; GB/T13927; JB/T9092
4. Structure features: Bolted bonnet; three-piece;
5. Materials conform to ANSI/ASTM;
6. Main materials: A105; LF2; F5; F11; F22; 304(L);316(L); F347;
F321; F51; Monel; 20Alloy.

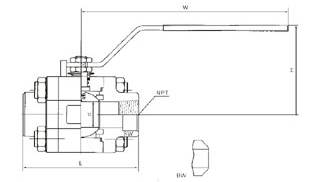

Main Dimensions
|
Class |
F.P |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
|
|
800-1500lb |
L1 |
92 |
92 |
92 |
111 |
127 |
140 |
152 |
152 |
|
|
W |
108 |
108 |
108 |
146 |
178 |
178 |
200 |
200 |
||
|
H |
51 |
51 |
51 |
108 |
81 |
85 |
105 |
105 |
||
|
d |
CL800 |
6 |
9 |
13 |
18 |
23 |
28 |
35 |
49 |
|
|
CL1500 |
6 |
9 |
13 |
19 |
25 |
32 |
38 |
49 |
||
|
Weight(kg) |
2.3 |
2.4 |
2.5 |
3.4 |
5.4 |
6.4 |
11 |
13 |
||
|
2.3 |
2.4 |
2.5 |
3.7 |
5.8 |
6.8 |
11.5 |
13.7 |
|||
